Find your vehicle › Ford › Ranger › Ranger Next Gen 2022+
Long range fuel tanks
One tank fits the Ranger Next Gen 2022+.

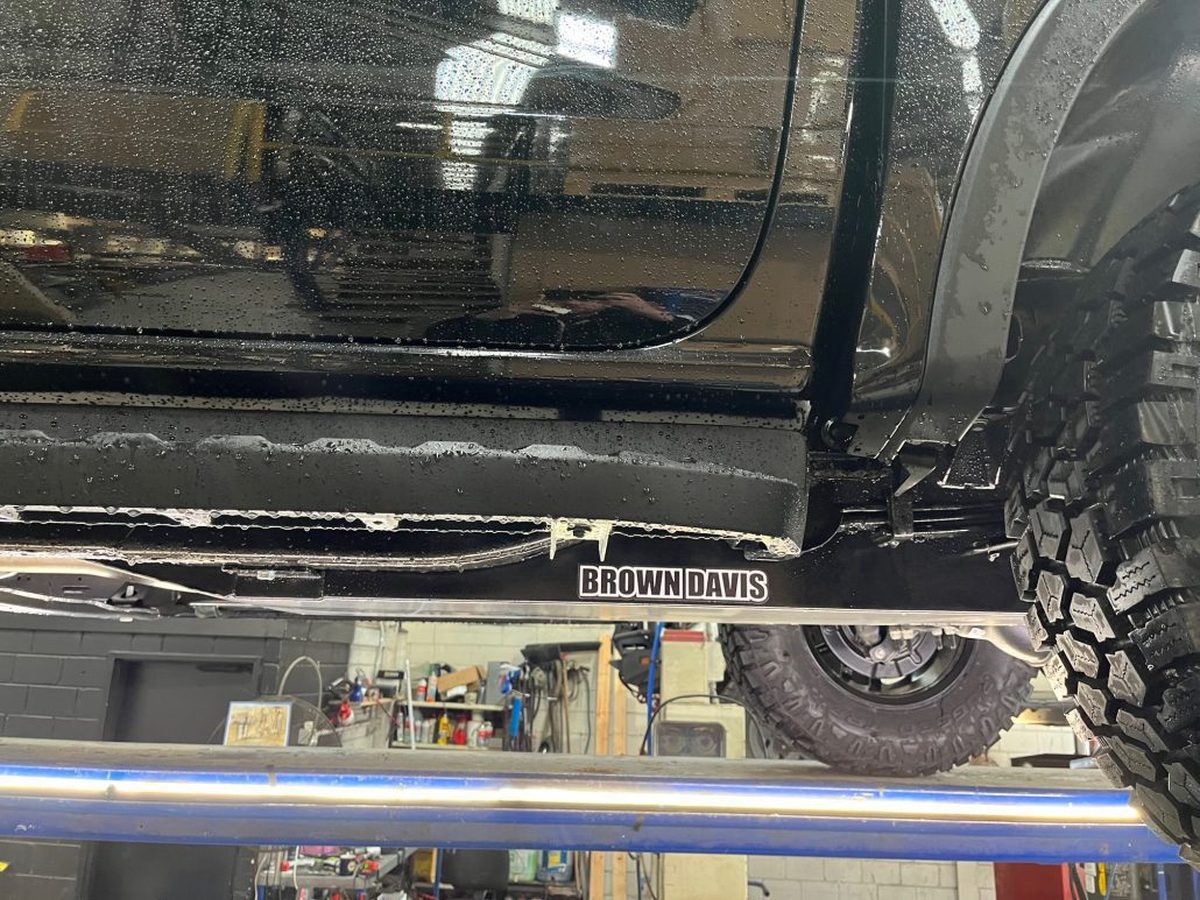

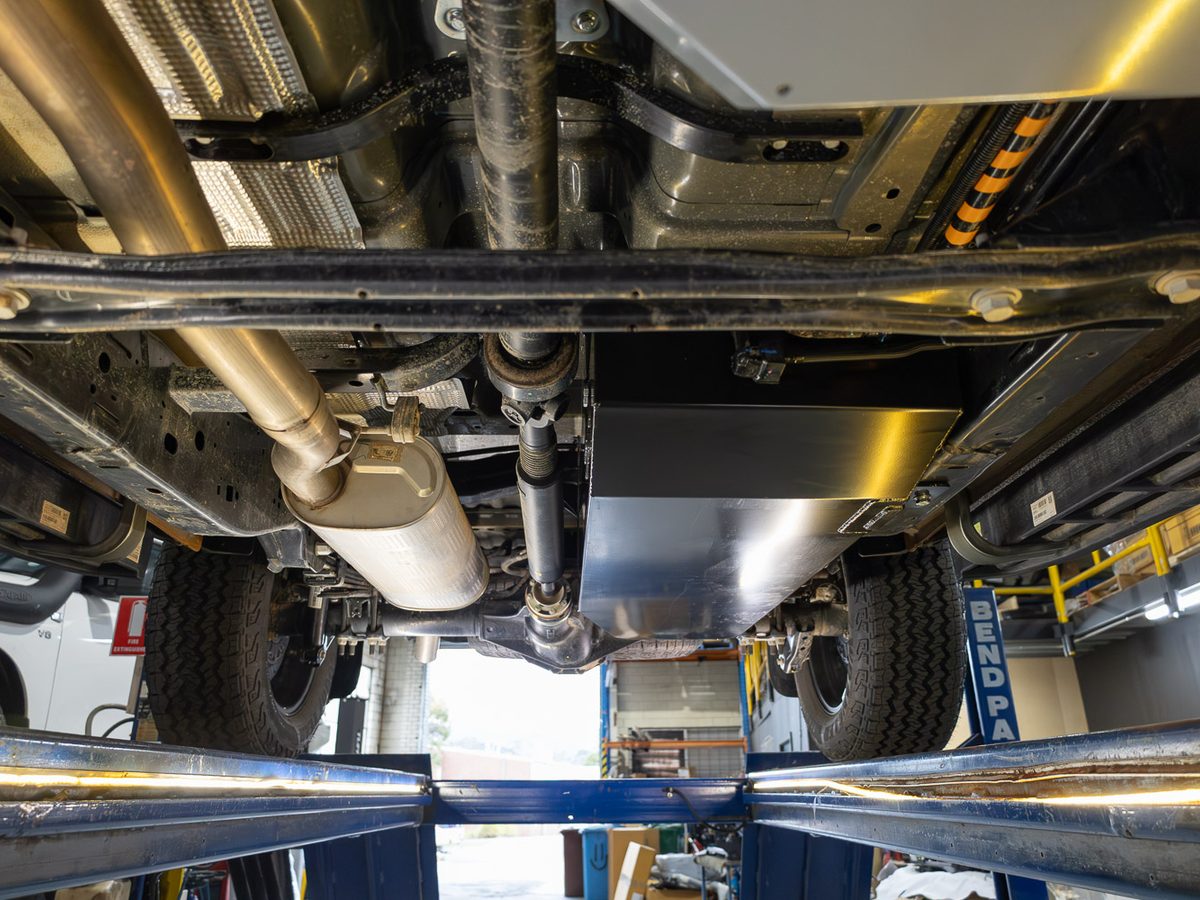

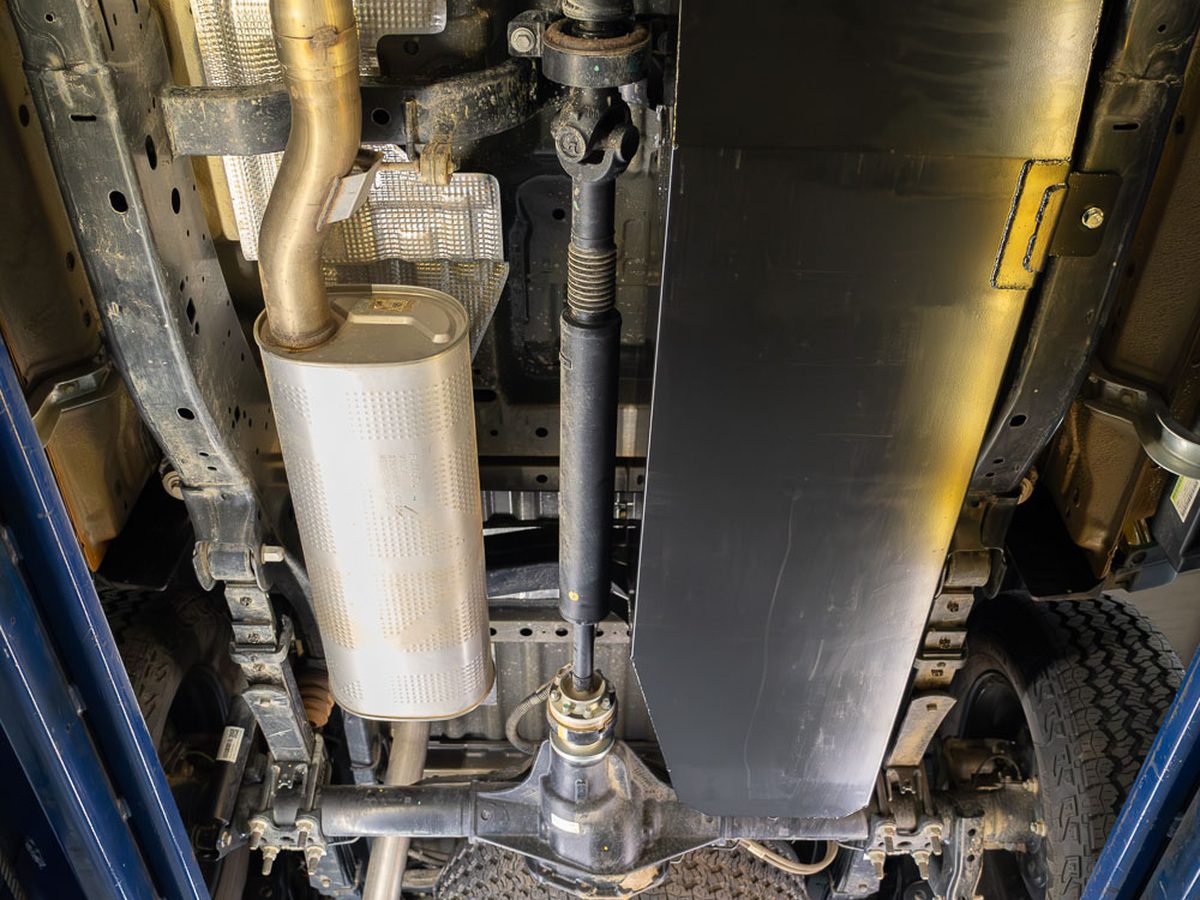

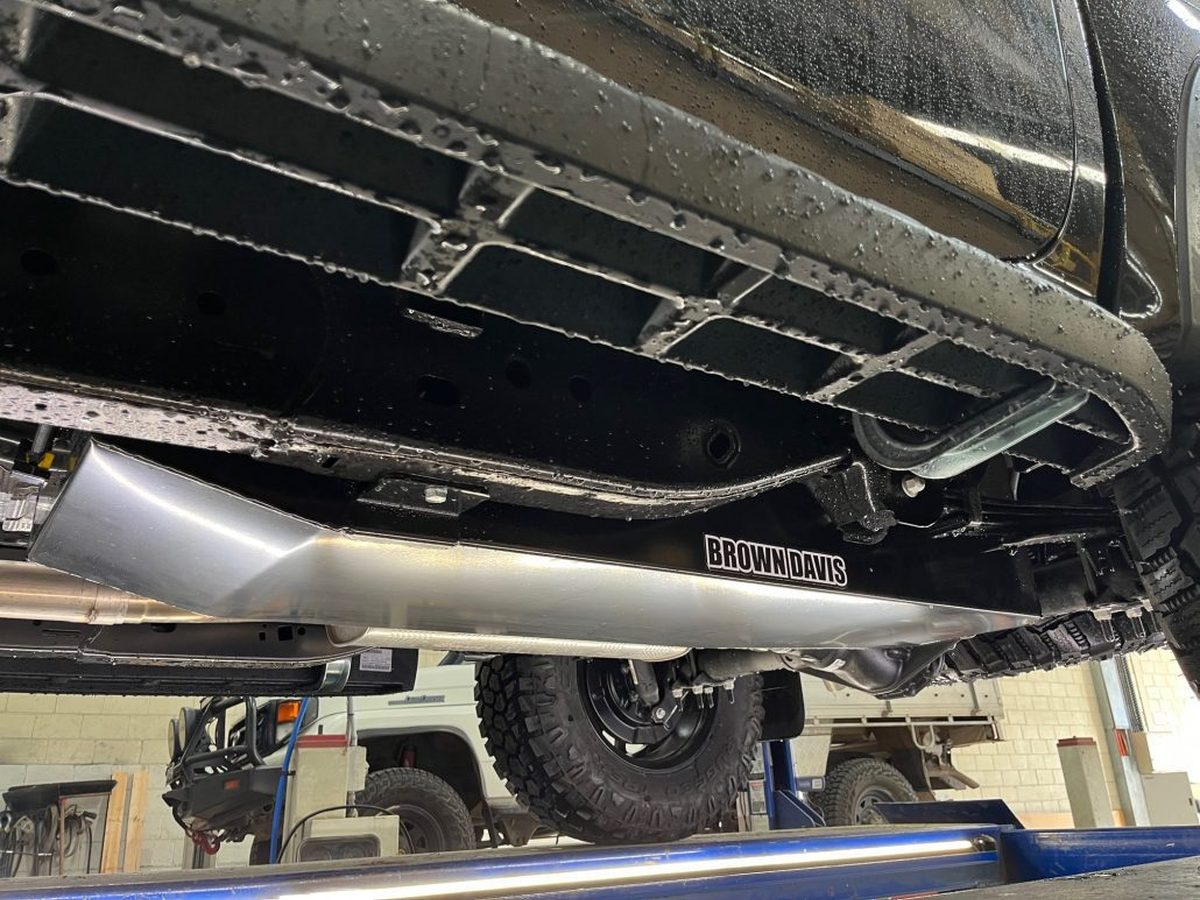

FR22R1 · 160 litre steel replacement tank
Doubles the factory 80 litres. The 160 litre tank bolts in where the standard tank sits and keeps the factory filler and gauge.
Specifications
- Part number
- FR22R1
- Tank type
- Replacement
- Material
- Steel
- Capacity
- 160 L
- Tank location
- Replaces the factory tank
- Filler point
- Factory filler
- Fuel supply
- Factory system
- Fitting time
- 2 hours
- Modifications
- None required
- Fitment notes
- Diesel models, V6 and bi-turbo. Does not suit extra cab models.
Driving range at 12 L/100 km
Standard vs Brown Davis
+80 Lmore fuel on board
+667 kmextra range (approx.)
+100%more capacity
Factory fuelWith Brown Daviskm
Standard figure is the factory capacity (80 L factory tank). Range assumes 12 L/100 km, typical for a loaded touring 4x4. Towing, sand and corrugations use more fuel. Never run a tank completely dry.
+80 L is about 4 jerry cans you no longer carry on the roof.
The jerry can maths
4 jerry cans.
Or one Brown Davis tank.
The FR22R1 for the Ranger Next Gen 2022+ replaces the factory 80 L tank with a 160 L Brown Davis tank in the same place. That extra 80 L is four 20 L jerry cans you no longer strap to the roof.
4 × 20 L · about 17 kg of diesel in each
+80 Lone tank · bolted in · filled at the bowser67 kgof diesel lifted by hand at every refill
4pours, caps and chances to spill
0cans on the roof with a Brown Davis tank
4 × 20 L jerry cans
Brown Davis tank
Carrying it
On the roof rack, raising your centre of gravity
Under the vehicle, inside the chassis line
Refuelling
Stop, unstrap, pour, repeat 4 times
Fill at the bowser like your factory tank
Lifting
About 67 kg of diesel lifted by hand
Nothing to lift
Spills and fumes
Every pour is a chance to spill
Sealed system with a rollover valve
Theft
Cans on the roof are easy to take
Bolted to the chassis
Knowing what is left
Lift each can and guess
Read it on your fuel gauge
The Explore Life · Africa series
Under vehicle protection
UGFR22 · Full underbody guard set
Laser-cut 3 mm steel, powder coated grey, with recessed mounts. Fits the V6 and bi-turbo.
Specifications
- Part number
- UGFR22
- Guard type
- Full set
- Protects
- Front, sump, transmission and transfer case
- Material
- 3 mm steel, powder coated grey
- Fitting time
- 45 minutes
Fuel filters

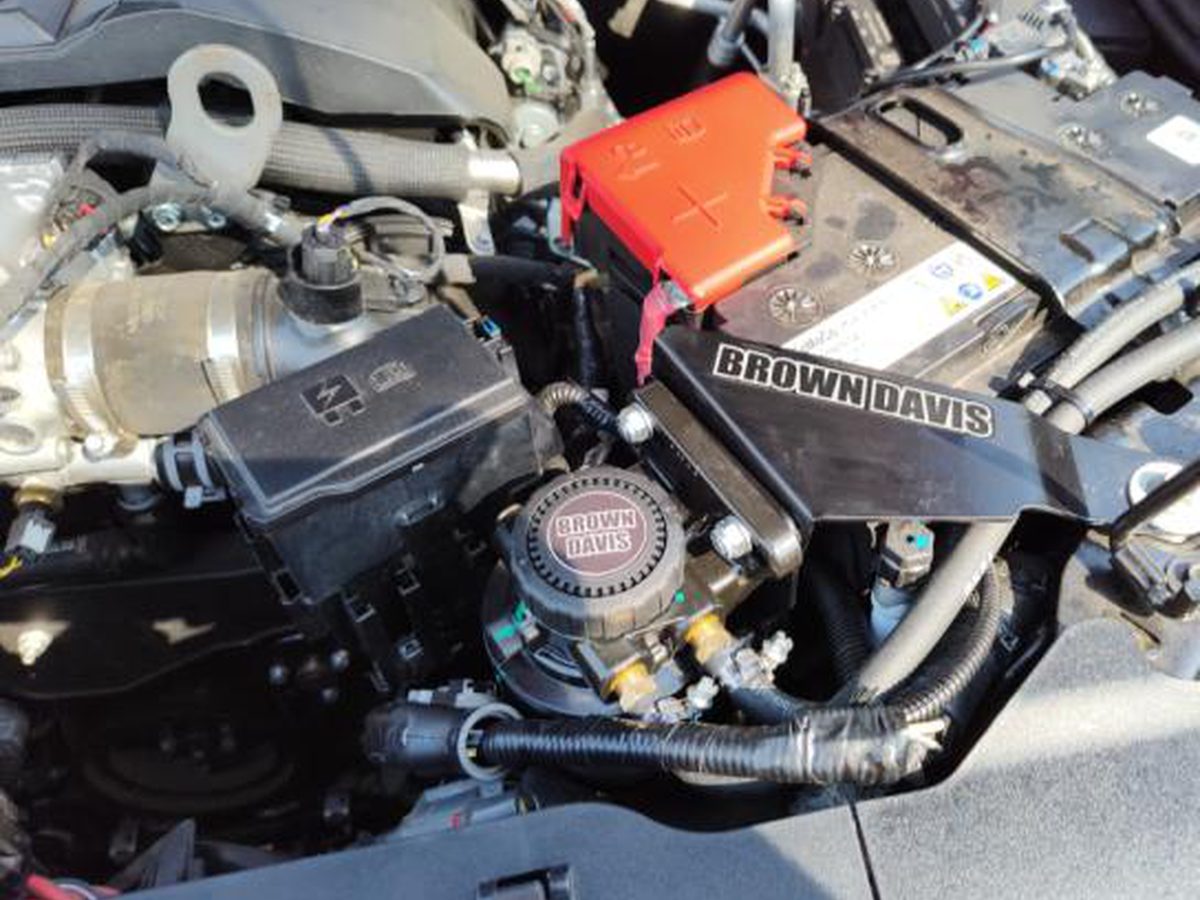

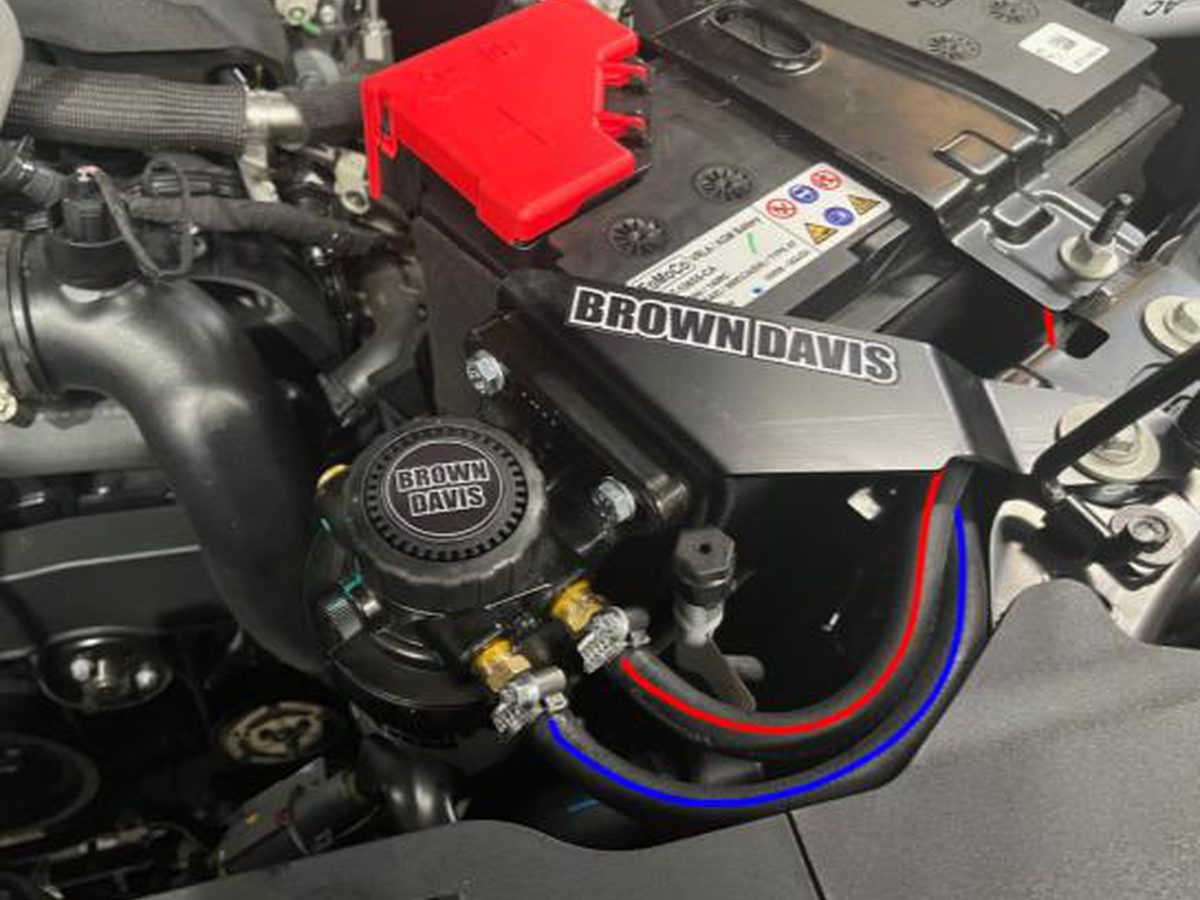

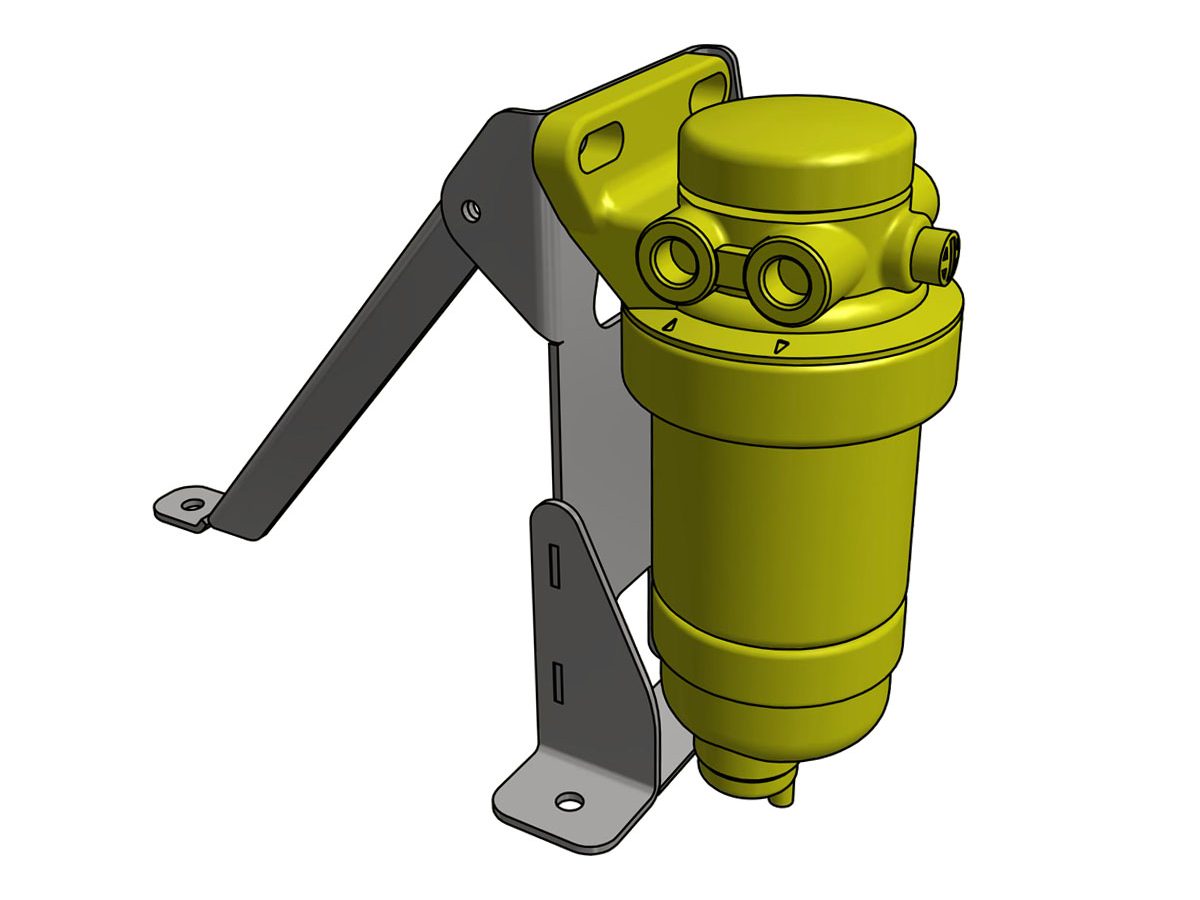

FF-FR22 · Primary pre-filter kit (V6)
A Brown Davis 20 micron pre-filter that catches water and dirt before the factory filter. Fits all V6 models.
Specifications
- Part number
- FF-FR22
- Kit type
- Primary (pre) fuel filter
- Fitting time
- 1 hour
- Fitment notes
- No visual glass bowl with this kit.
Questions
Does the kit include everything I need?
Yes. Every Brown Davis tank comes with the brackets, hoses, fittings and step-by-step instructions. Auxiliary tanks also include the pump or changeover wiring and a gauge.
Will my fuel gauge still work?
Replacement tanks use the factory sender, so your gauge keeps working. Auxiliary tanks come with their own gauge.
Why is the distance-to-empty reading wrong?
The vehicle's computer still thinks it has the factory tank size, so the distance-to-empty figure will read low. Use the fuel gauge and your trip meter instead.
Does it change my ground clearance?
No. Our tanks follow the factory lines and keep your ramp-over and departure angles.
