Australia’s toughest tanks, now available in Africa

For over 40 years we have built long range fuel tanks, underbody protection and fuel filter kits in Australia, taking thousands of people to the most remote parts of that huge country and bringing them home safely. Now the same gear is fitted to bakkies and 4x4s across southern Africa, for the long gravel roads of the Kalahari, Namibia and beyond.

The Explore Life · Africa series

Find products for your vehicle

Show products

Not sure of your series? Browse every make and model.

The Explore Life · Elephant Sands, Botswana

Cape Town to Dar es Salaam · 5 countries · 4 borders

6,000 km across Africa.
8 fuel stops. Or 4.

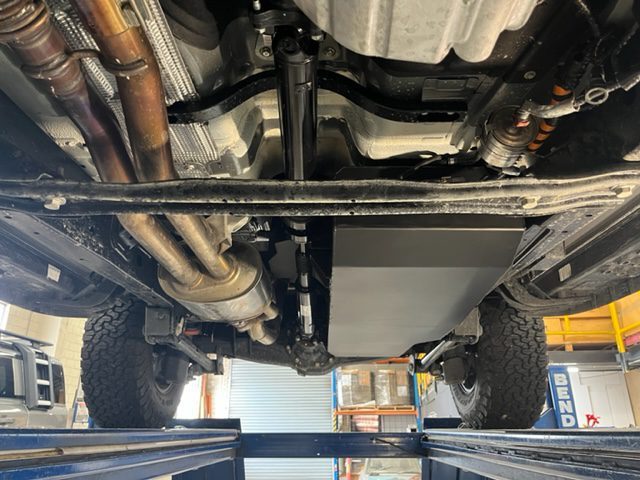

Four long legs, each more than 1,000 km, through Namibia, Botswana and Zambia. On a Ranger Raptor with the factory 80 L tank you stop for fuel 8 times between cities. With the FRAP22R1 140 L Brown Davis tank, 4.

  1. Cape Town → Windhoek1,480 km · N7 · B1
    Factory 80 L
    Brown Davis 140 L
  2. Windhoek → Gaborone1,100 km · Trans-Kalahari
    Factory 80 L
    Brown Davis 140 L
  3. Gaborone → Lusaka1,465 km · A1 · Kazungula
    Factory 80 L
    Brown Davis 140 L
  4. Lusaka → Dar es Salaam1,945 km · Great North Road
    Factory 80 L
    Brown Davis 140 L
Find the tank for your vehicle

Approximate road distances. Fuel stops between cities at 12 L/100 km, refilling in each city and keeping a 10% reserve. Fuel is not always available in small towns, so plan every leg.

ZimbabweZambiaUgandaTunisiaTogoTanzaniaeSwatiniS. SudanSudanSouth AfricaSomaliaSomalilandSierra LeoneSeychellesSenegalSão Tomé and PrincipeRwandaNigeriaNigerNamibiaMozambiqueMoroccoW. SaharaMauritiusMauritaniaMaliMalawiMadagascarLibyaLiberiaLesothoKenyaGuinea-BissauGuineaGhanaGambiaGabonEthiopiaEritreaEq. GuineaEgyptDjiboutiCôte d'IvoireDem. Rep. CongoCongoComorosChadCentral African Rep.CameroonBurundiBurkina FasoBotswanaBeninAngolaAlgeriaCAPE TOWNSOUTH AFRICAWINDHOEKNAMIBIAGABORONEBOTSWANALUSAKAZAMBIADAR ES SALAAMTANZANIA1,480 KM1,100 KM1,465 KM1,945 KM

The Explore Life · Africa series

Africa series · 11 episodes

South Africa to Victoria Falls.
Eleven episodes of Africa.

Four years in the making, The Explore Life’s Africa series follows Matt, Dean and the crew in a Land Cruiser 200 and two Hiluxes, an N80 and an N70, from South Africa into Botswana. They chase black-maned lions across the Kalahari with bushfires closing in, pole a mokoro through the Okavango Delta and push through the flooded tracks of Moremi.

Then come Linyanti and Savuti, a broken N80 Hilux nursed out of the bush to Kasane, and a finish at Victoria Falls in Zimbabwe.

BOTSWANAZIMBABWESOUTH AFRICAZAMBIASOUTH AFRICAEP 1–2 · STARTKHAMA RHINO SANCTUARYEP 2–3CENTRAL KALAHARIEP 3–4MAUNEP 5–6OKAVANGO DELTAEP 6MOREMIEP 7–8LINYANTIEP 9SAVUTIEP 9KASANEEP 10VICTORIA FALLSEP 11 · FINISH

Route drawn from the episode descriptions. Approximate, not every track.

The Explore Life · Africa series

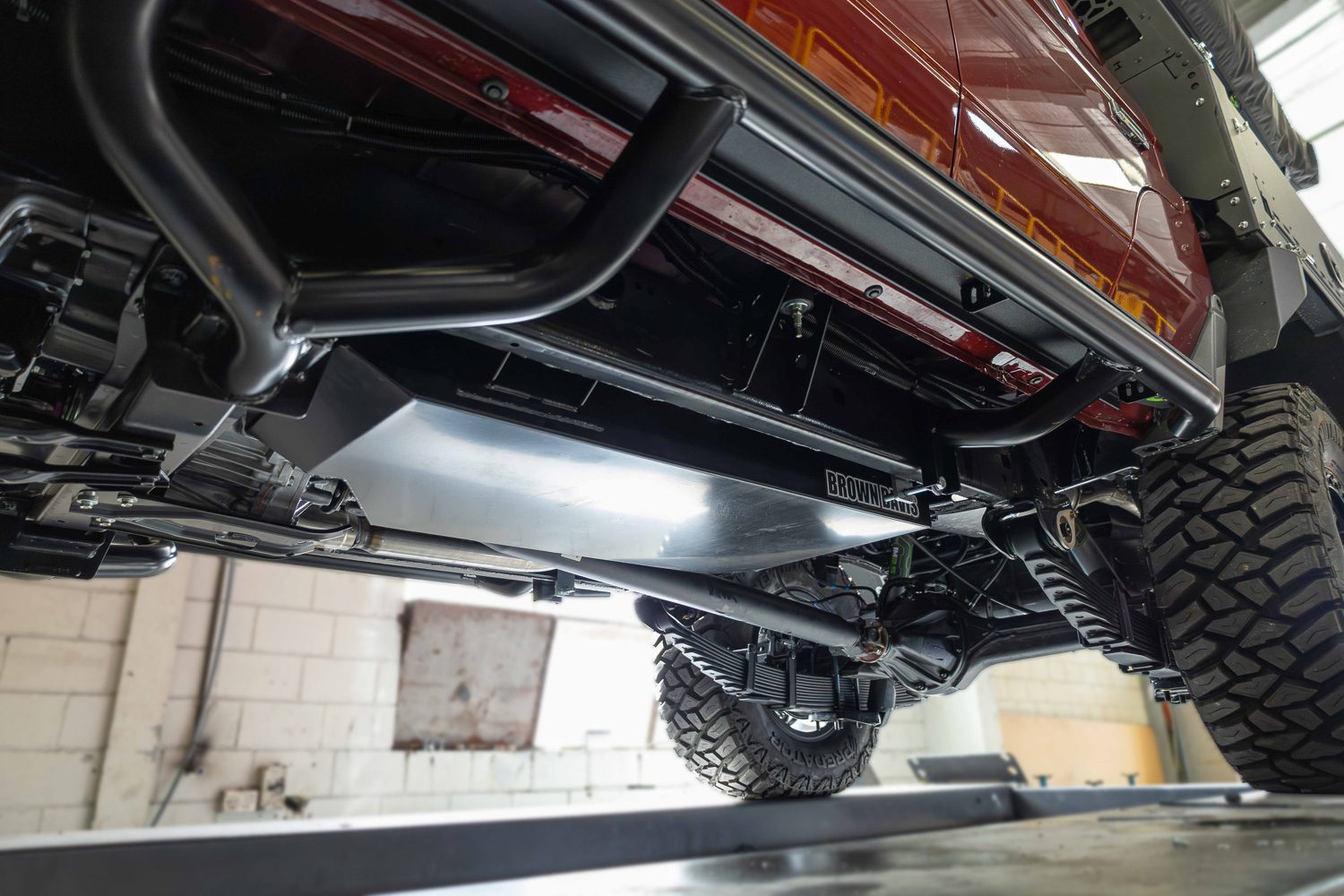

Under vehicle protection

Bulletproof armour for your underside.

A punctured sump, a tail shaft jammed with logs or a damaged radiator can leave you stranded a long way from help, facing a costly repair. A full Brown Davis set covers the four parts that cop it most.

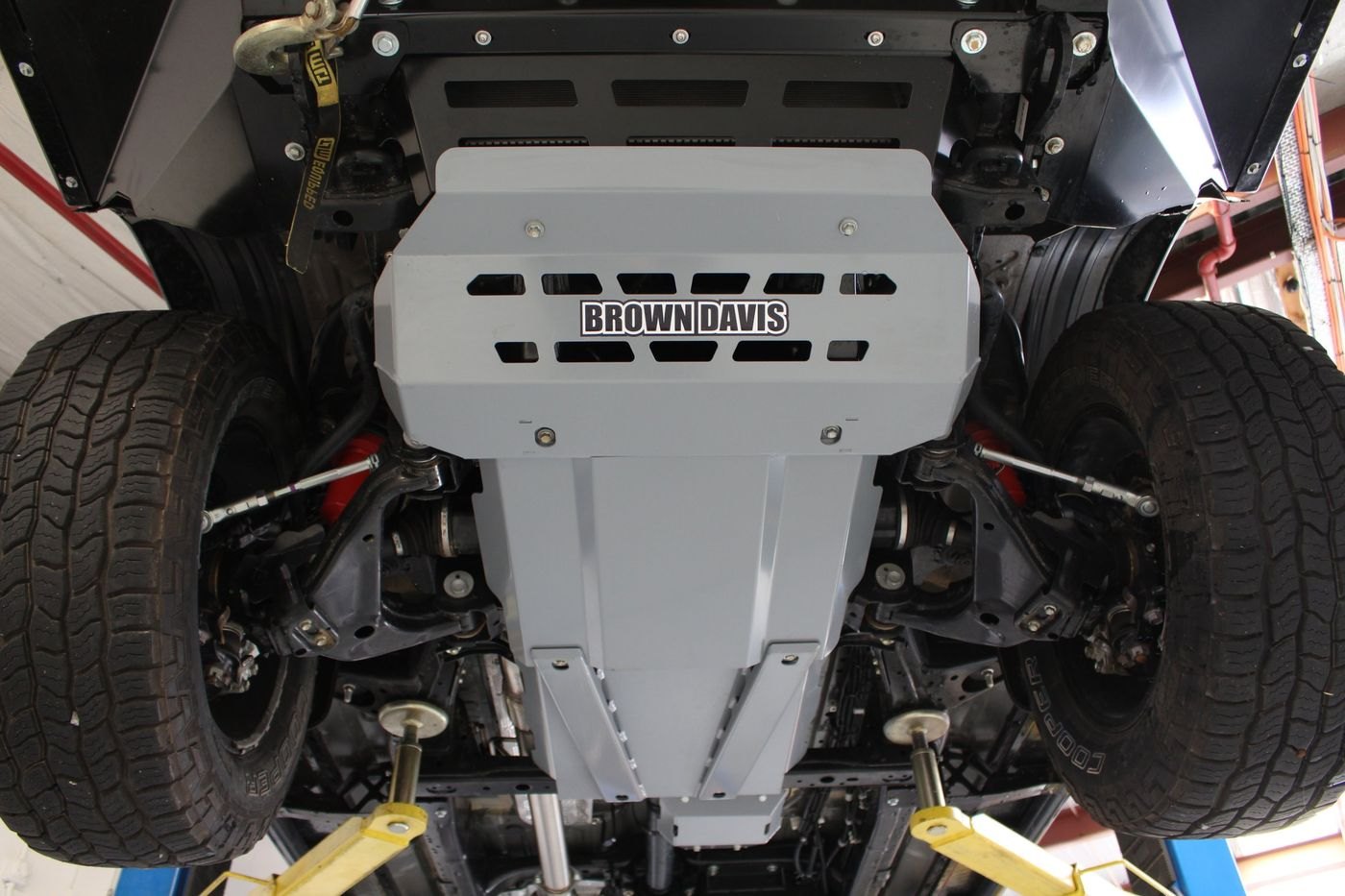

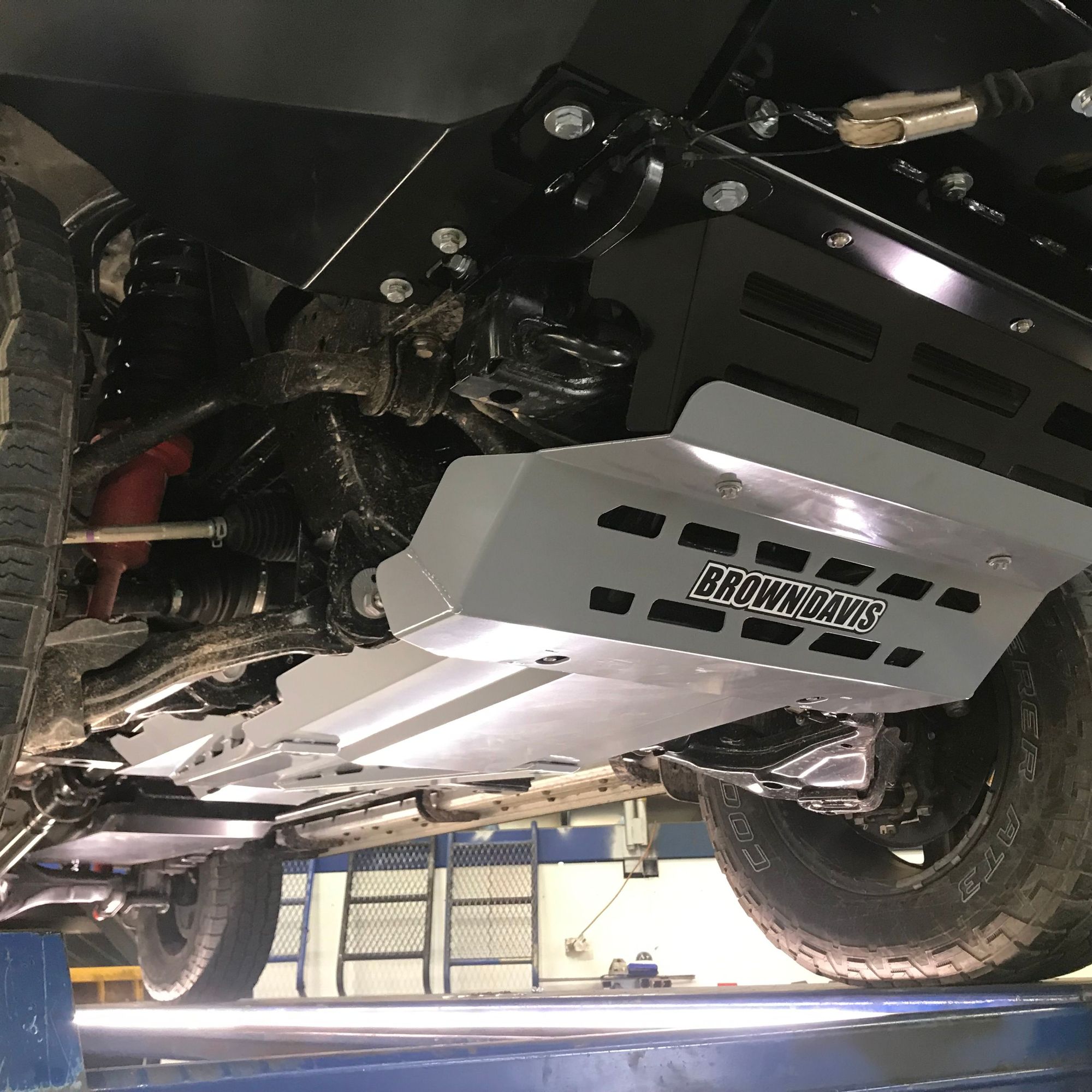

A full Brown Davis underguard set fitted under a 4WD, seen from below on a hoist
Full set from below · front at the top
  1. 01RadiatorFront guard. Protects the radiator and steering components.
  2. 02SumpKeeps rocks and stumps off the engine sump.
  3. 03TransmissionCovers the gearbox on rocky climbs and ledges.
  4. 04Transfer caseProtects the transfer case and keeps logs out of the driveline.
3 mm steelLaser cut and folded plate
Recessed boltsBolt heads tucked away from rocks
Angles keptApproach and departure stay the same
Powder coatedGrey finish against stones and salt
Made per vehicleShaped around each vehicle’s vital parts
DIY fitAll hardware supplied, easy to remove

Patriot Games

Fuel filter bracket kits · keep the fuel in your new tank clean

Don’t let one bad fill-up ruin your trip.

A bigger tank means more fuel from every fill, and on a remote trip some of it comes from a bowser you know nothing about. One batch with dirt, water or algae in it can block your main filter and leave you in limp mode, a long way from a mechanic.

Fit a Brown Davis pre-filter with your new tank and the nasties are caught before they reach your factory filter, pump and injectors.

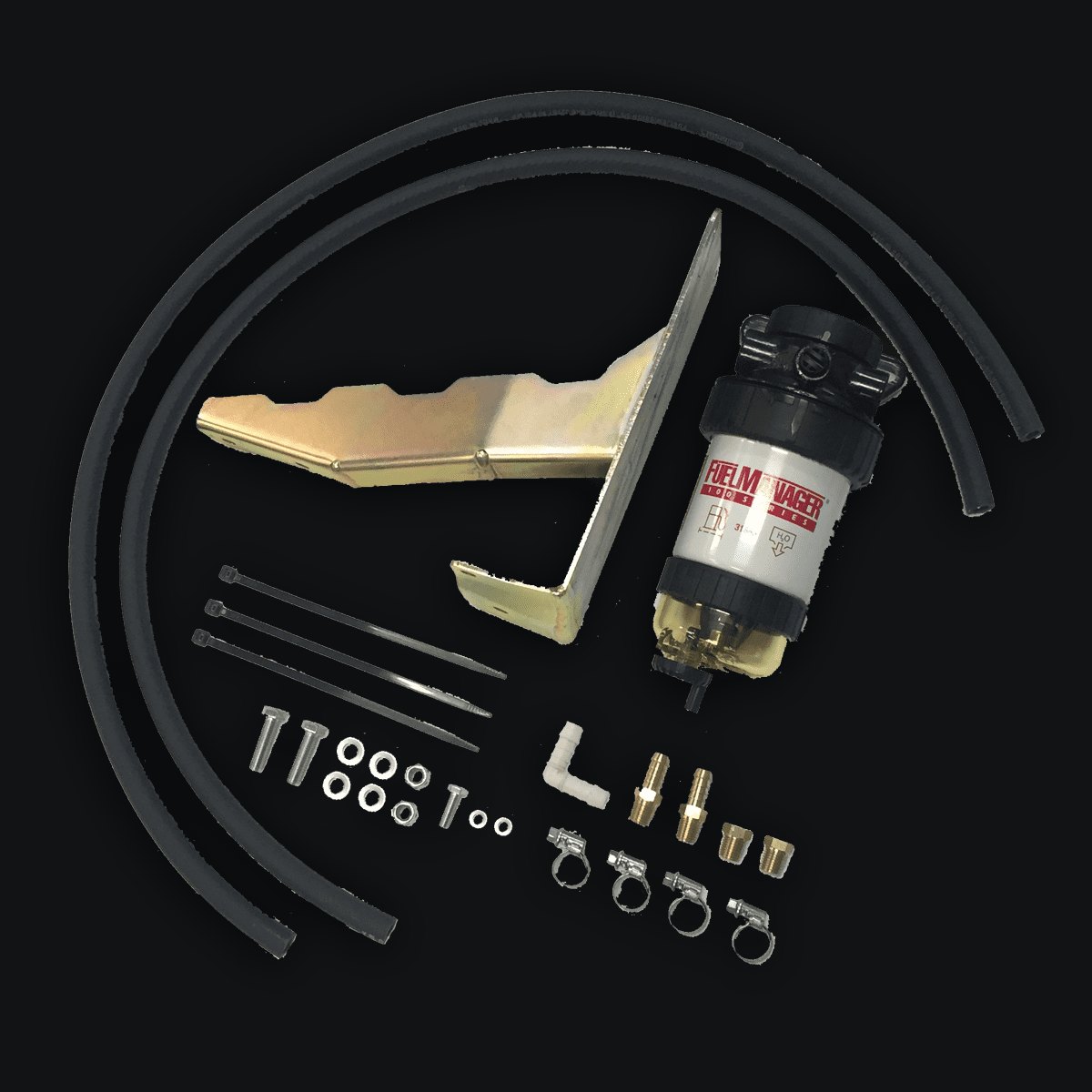

Brown Davis fuel filter bracket kit: bracket, 20 micron filter with water bowl, fuel hose, brass fittings, hardware and clamps

How it works · from your tank to your injectors

The pre-filter takes the hit. Your factory filter doesn’t.

01

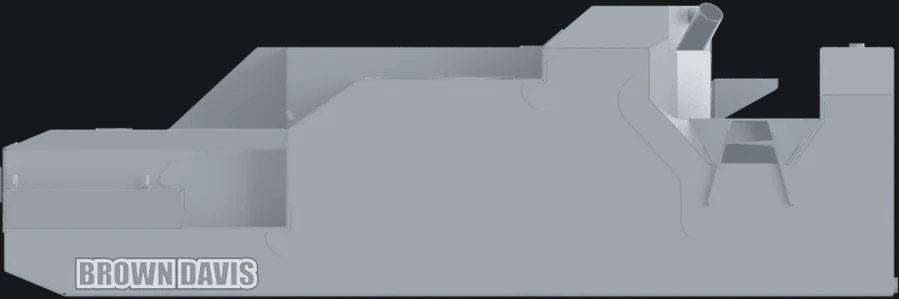

Brown Davis TH15R1 replacement tank, side view

Your Brown Davis tank

Up to twice the fuel from every fill, and some of it from bowsers you know nothing about.

In the fuelWaterAlgaeDirt + big particlesFine particles
02

Brown Davis pre-filter

20 micron element and a clear water bowl. It takes the hit from a bad fill-up, and you can see and drain what it catches.

Caught hereWaterAlgaeDirt + big particlesPasses throughFine particles
03

Factory filter

About 2 micron. With the big stuff already gone, it only has fine particles left to deal with, so it lasts and keeps flowing.

Caught hereFine particles
04

Pump and injectors

Clean diesel only. No limp mode, no blocked filter on the side of the track, no costly repair.

Reaches your injectorsClean diesel
Why 20 micron?Common rail diesels run about 2 micron main filters to protect the pump and injectors. A 20 micron pre-filter is 10 times coarser, so it takes the worst of a bad batch before your main filter blocks and drops you into limp mode.
Water and algaeAlgae in diesel grows in the water. The clear bowl lets you see water building up and drain it on the side of the track, so the sensors downstream keep working.
In the boxVehicle specific 3 mm zinc plated bracket, 20 micron filter with water bowl, quality fuel hose, corrosion proof brass fittings, 8.8 tensile hardware and stainless clamps.

The Explore Life · Africa series

The jerry can maths

3½ jerry cans.
Or one Brown Davis tank.

The TH15R1 for the Hilux 2015–2025 replaces the factory 80 L tank with a 150 L Brown Davis tank in the same place. That extra 70 L is three and a half 20 L jerry cans you no longer strap to the roof.

The Explore Life refilling jerry cans on the roof rack
The Explore Life refilling jerry cans on the roof rack
3½ × 20 L · about 17 kg of diesel in each
+70 Lfactory 80 L + Brown Davis 70 L = 150 L
59 kgof diesel lifted by hand at every refill
4pours, caps and chances to spill
0cans on the roof with a Brown Davis tank
3½ × 20 L jerry cans
Brown Davis tank
Carrying it
On the roof rack, raising your centre of gravity
Under the vehicle, inside the chassis line
Refuelling
Stop, unstrap, pour, repeat 4 times
Fill at the bowser like your factory tank
Lifting
About 59 kg of diesel lifted by hand
Nothing to lift
Spills and fumes
Every pour is a chance to spill
Sealed system with a rollover valve
Theft
Cans on the roof are easy to take
Bolted to the chassis
Knowing what is left
Lift each can and guess
Read it on your fuel gauge
