Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN.
Fuel System Options
OPTION 1: INDEPENDENT ENGINE FEED (DIESEL ONLY) (MOST POPULAR)
PART NUMBER: TL79A4
This system is designed as a change over system, which means at the flick of a switch driver can independently feed the engine directly from main or Brown Davis auxiliary tank. This allows the operator to empty rear tank and feed engine directly off Brown Davis auxiliary tank, taking weight from over the back. This is the same system as the early 79 Series single cabs and 100 series with twin tanks. All parts and hardware for install are supplied
OPTION 2: TRANSFER SYSTEM (PETROL AND DIESEL)
PART NUMBER: TL79A2
This system is designed to pump the fuel from the Brown Davis auxiliary fuel tank into the vehicles standard fuel tank. At the flick of a switch fuel will be pumped into your vehicles standard tank to then be feed to the engine. An LED gauge is supplied to show driver the fuel level of the auxiliary fuel tank at all times. When the auxiliary tank becomes empty an automatic alarm will sound to tell driver to switch pump system off. This prevents pump from continuously running which can course pump failure. All parts and hardware for install are supplied
Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.
Fuel Tank Construction Material
All Brown Davis long range fuel tanks are constructed from 2mm aluminium coated cold rolled steel, to ensure maximum strength and durability. This gauge of steel is sufficiently resistant to impact damage that additional tank guards are not necessary. The aluminium coating on the specific steel used by Brown Davis, offers the best of both worlds with the strength of steel and the anti corrosion properties of aluminium.

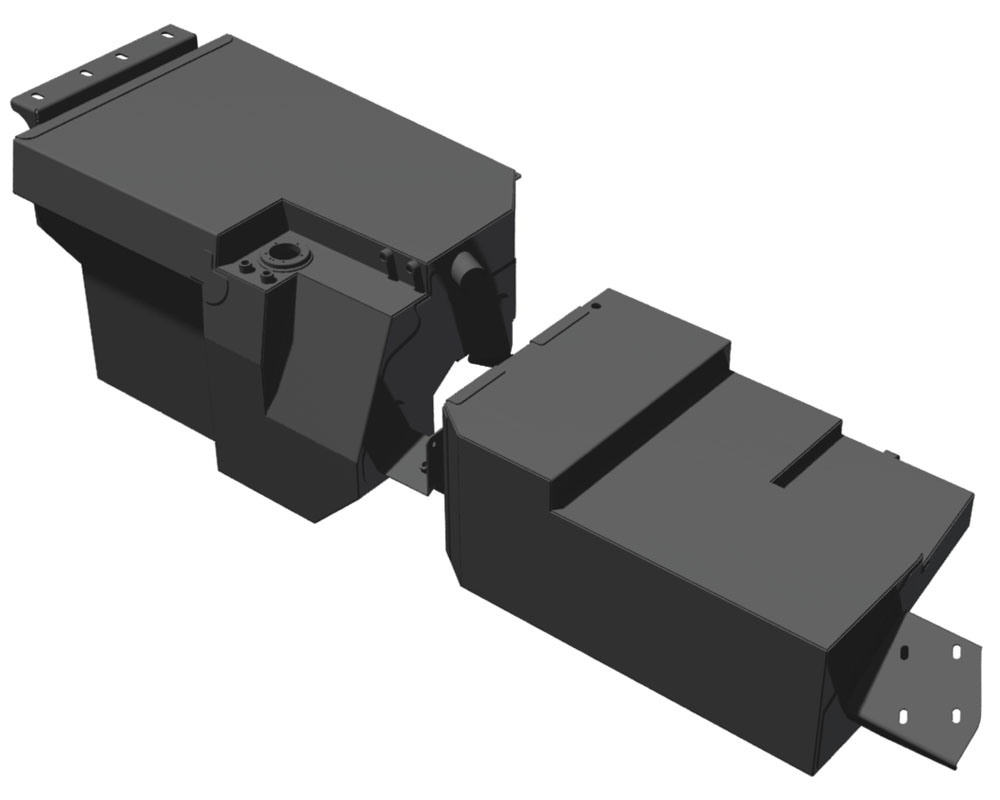

Tank Type - Replacement
Replacement Long range tanks are designed to replace the vehicles standard fuel tank with an increased fuel capacity. The tank is a simple bolt in solution to increase your vehicles driving range. On the current model dual cab ute range the fuel capacity increase is around 1 00%. Replacement fuel tanks are designed to minimise vehicle modifications utilising the standard fuel gauge, pump assembly and fill point for a simple installation. All Brown Davis fuel tanks come with a flush mounted drain plug for easy draining in the event of contaminated fuel. The tanks come with all parts and hardware supplied.
Off road touring is fraught with potential hazards that can ultimately leave travellers stranded in remote, hard to reach locations. Those who have suffered the merciless wrath of the outback’s rugged terrain, will know first hand just how serious an issue it really is. A punctured sump, a tail-shaft jammed with logs, or even a damaged radiator; a failure of this nature can be both very costly and terrifying for those unlucky enough to be stranded without help.
Brown Davis has tackled the issue of Underbody protection head on, to develop bullet proof amour for the underside of most popular off road machines. With over 30 years off road experience, and a solid understanding of what is encountered when off road trekking, Brown Davis has every base of design covered to ensure you have every chance of battling the outback and winning every time. By incorporating specific design features and utilizing high grade materials, the Brown Davis Range of Underguards will protect you and your vehicle.
Laser cut on high tech machinery, each guard is manufactured from 3mm steel with folded reinforcements to provide significant strength without adding unnecessary weight to your vehicle. All guards come with full fitting kits where applicable, (if factory mounting bolts cannot be retained) and comprise of high tensile grade 8.8 fasteners for a true bolt on item.
Don’t let that one bad fill up ruin your holiday!
Protect your engine and avoid expensive repair costs! Install a Brown Davis DIY Fuel Filter Kit!
• Fuel Manager Filter with glass bowl – Mounted in a visual location
• Vehicle specific custom designed bracket
• Fuel hose, fittings, clamps all fixing hardware for easy DIY fit
• Step by Step DIY instructions:
Compatibility with other products
- Fits with passenger side dual battery systems (eg: Piranha, ARB)
- Fits with most quality snorkels (eg: safari, tjm, airtek)
